handem electronics

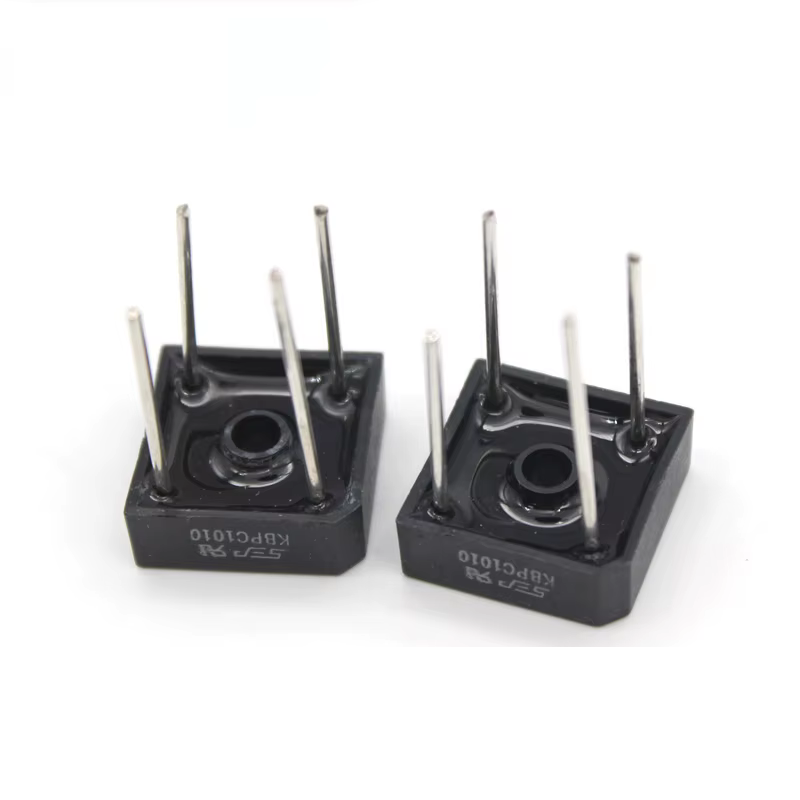

Bridge Rectifier. Diode. KBPC1010
Bridge Rectifier. Diode. KBPC1010
Regular price
£0.75 GBP
Regular price
Sale price
£0.75 GBP
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The KBPC1010 is a widely used single-phase silicon bridge rectifier designed to convert alternating current (AC) into direct current (DC). It features a maximum forward current rating of 10a and handles a peak reverse voltage of 1000v
Key Specifications
- Maximum Forward Current 10a
- Peak Reverse Voltage 1000v
- Surge Current: Handles up to 250Afor non-repetitive peaks
- Voltage Drop: 1.1V
- Operating Temperature: -55 to +125 degrees C
- Package: 4-pin epoxy/metal case with through-hole mounting for a heatsink
