Rectifier module. low voltage, 1A assembled.

Rectifier module. low voltage, 1A assembled.

£1.60 GBP
£1.60 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

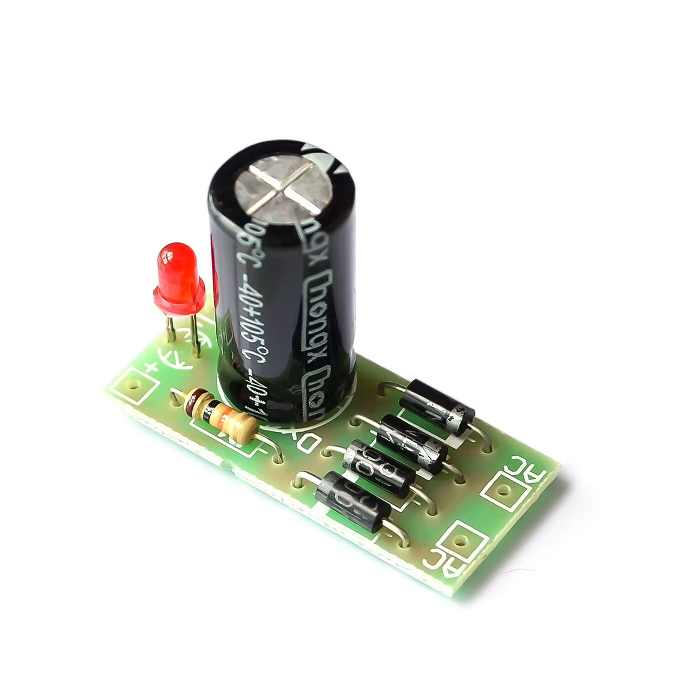

Bridge rectifier module. Assembled and ready to work.
Solder connection required.
Maximum 1 amps and 48 volts
This is NOT a Hammant and Morgan product.

SPEC:
1N4007 bridge rectifier filter
Capacitor onboard 470 uF, 50v
LED onboard

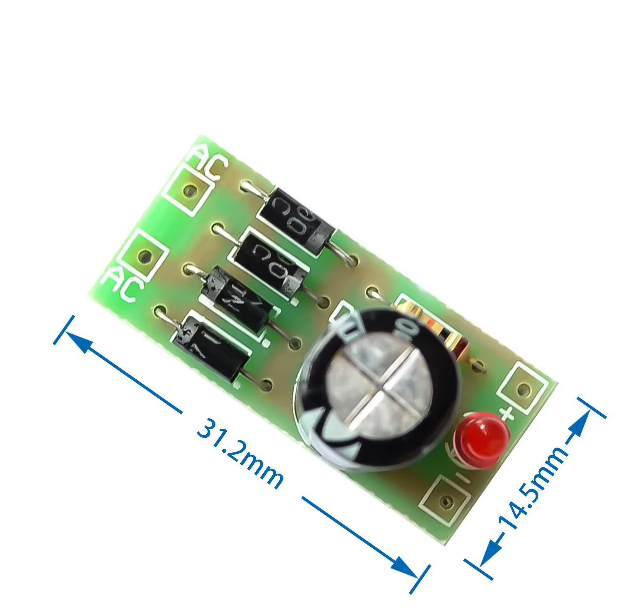

PCB size mm [28*13*1.2]

Rectifier output voltage [output = input x1.414] [for example: input 12V AC, then the output 12x1.414=16.968V, which is the calculation of the no-load voltage, only for reference, there will be a deviation
A streamlined rectifier module, a rectifier filter is widely used in small transformer output, mainly used in electric power requirements.
